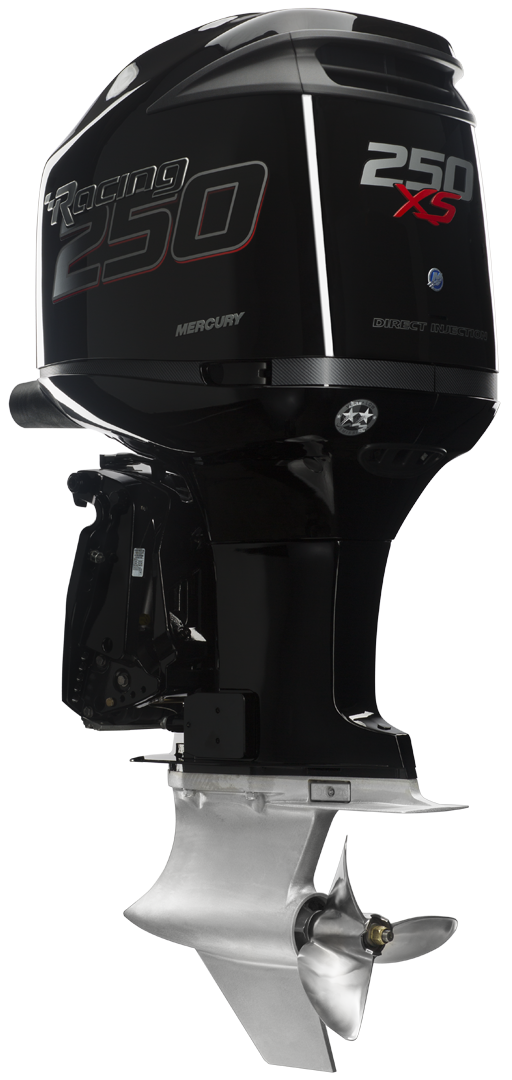

OptiMax 250XS
THE ONE FROM WHICH ALL OTHERS ARE MEASURED
Those discerning buyers looking for the fastest 250 h.p. outboard on the planet look no further than the OptiMax 250XS – holder of the APBA 1800 lb. Pro Stock Bass 250 and 1600 lb. Pro Stock Bass Low-Emissions world kilo bass boat speed records – set back and never matched since 2002.
The 250XS is the power of choice for high performance bass boats, vee-bottom and catamaran sport boats capable of speeds in excess of 85 mph. Low-water pickups and a crescent leading edge design enable the race-proven Sport Master gearcase to operate at elevated transom heights of 27″ to 30″ (685 mm to 762 mm) for maximum efficiency and speed. Solid engine mounts, combined with the Sport Master gearcase, provide unsurpassed handling.
|
|
|
| |
| |
|
|
Record Setting Performance
The 250XS is the power behind two APBA Low-Emissions world kilo bass boat speed records.
|
|
Power to Weight
The 3.0 Liter V-6 powerhead delivers unmatched power, performance, durability and reliability.
|
|
|
|
Low Emissions
Precise fuel combustion results in smoke-free emissions and clean environment for future generations to enjoy.
|
|
Efficient
Two stage direction fuel injection technology burns fuel more completely for an average of 15% improved fuel economy compared to competitive engines.
|
|
|
|
Handling
Solid upper and lower mounts for enhanced handling at higher speeds – think of it as a sports car suspension in the automotive world.
|
|
|
|
Specifications
|
| Specs |
| |
|
| Propshaft Rated HP |
250 (187 kW) |
| Full Throttle RPM Range |
5000-6000 |
| Cylinders |
V-6 (60° vee) |
| Displacement ( cu.in/cc) |
185/ 3032 |
| Bore in/mm |
3.63/92 |
| Stroke in/mm |
3.00/76 |
| Induction System |
2-Stage Direct Fuel Injection |
| Ignition |
PCM Digital Inductive |
| Alternator System |
60-amp (756 watt) w/Voltage Regulator |
| Gear Ratio |
1.62:1, 1.75:1 |
| Fuel/Oil Ratio |
Electronic Multipoint |
| Recommended Oil |
Mercury Racing 2-Stroke Oil |
| Required Fuel |
87 Octane Minimum (R+M)/2 (92 RON) |
| Rotation |
Right-Hand Sport Master |
| Shaft Length in/mm |
20/508 |
| Weight lbs/kg |
505/229 |
| Warranty |
2-year limited for recreational boating, 3-year limited corrosion, up to 3 years of Mercury Product Protection (MPP) available |
|
| Tech |
|
- Two-year limited warranty for recreational boating and three-year limited corrosion warranty
- Features the SmartCraft Engine Guardian system, which monitors engine functions to forewarn of possible problems that could lead to engine damage
- The direct fuel injection air compressor features a lightweight pulley, along with the use of maxi-coated carbon steel bolts for enhanced compressor durability
- Electronic multipoint lubrication system delivers precise amounts of oil where and when it’s needed.
- High-performance rubber-coated reed blocks cushion five-petal, single-stage carbon fiber reeds for enhanced reed life without sacrificing performance
- A heavy-duty propshaft enhances the durability of the 3.0-liter Sport Master gearcase
- 3.0-liter Sport Master gearcase features a radial discharge stainless water pump for improved engine cooling
- 3.0L (185 CID) powerhead delivers unmatched power, performance, durability and reliability
- The 60-amp, belt-driven alternator is the most powerful in its class
- Solid upper and lower mounts and the race-proven Sport Master gearcase enable the 250XS to power single engine, lightweight hulls to speeds in excess of 85 mph
- The Mercury-exclusive PCM microprocessor provides the ability to optimize fuel, spark timing and knock control for each cylinder independently, enhancing engine running quality and performance
- Exceeds the fuel efficiency of many of today’s large four-stroke engines
- Runs on 87-octane fuel
- The 250 Sport XS features a higher air/fuel pressure differential than production engines, enhancing running quality.
- SmartCraft Control Area Network (CAN) system, a network of sensors and actuators, proactively monitors and controls multiple engine functions
- Comes equipped with a 14-pin Deutsch connector harness, which incorporates engine ignition and the SmartCraft CAN wiring in one connector
- Solid engine mounts improve engine response and overall boat performance at higher speeds
- A unique two-stage, direct-injection system atomizes fuel into small, uniform particles, resulting in complete and instantaneous combustion
- The fuel/air mixture is injected into the combustion chamber at 95 psi (15 psi higher fuel/air differential than standard DFI or OptiMax product) for enhanced high-RPM running quality
- The Sport Master gearcase, featuring a satin-finished housing enhanced by a race-proven torpedo shape featuring less frontal area, reduces drag and provides increased water flow
- Suitable For: Bass Boats, Single Engine Catamaran Sport Boats, River Racers, Single Engine Vee Bottom Sport Boats
|
| |
|
| |
|
| |
| |
|
|
|
|
